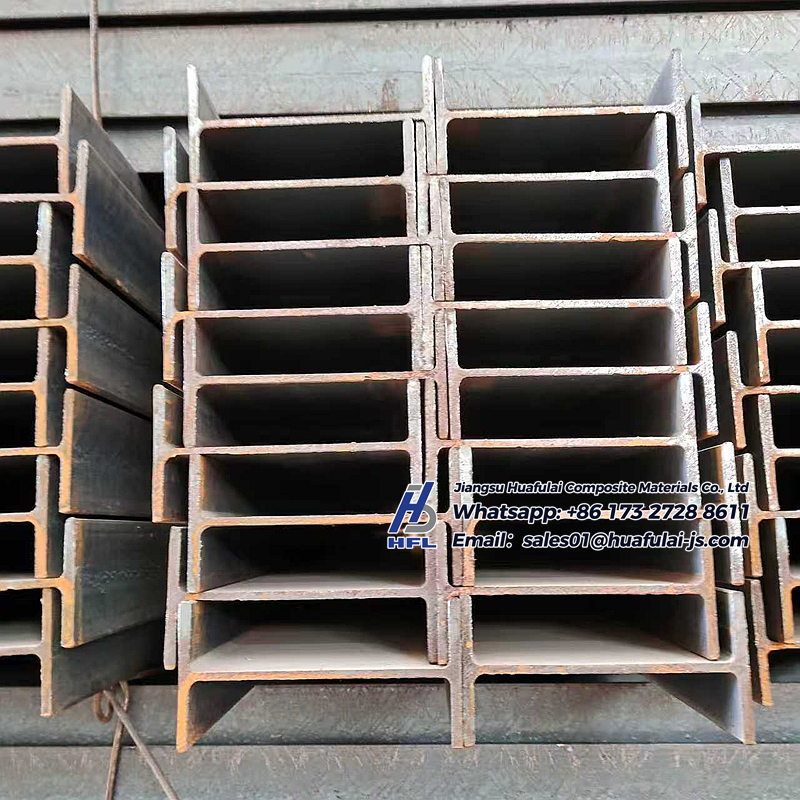

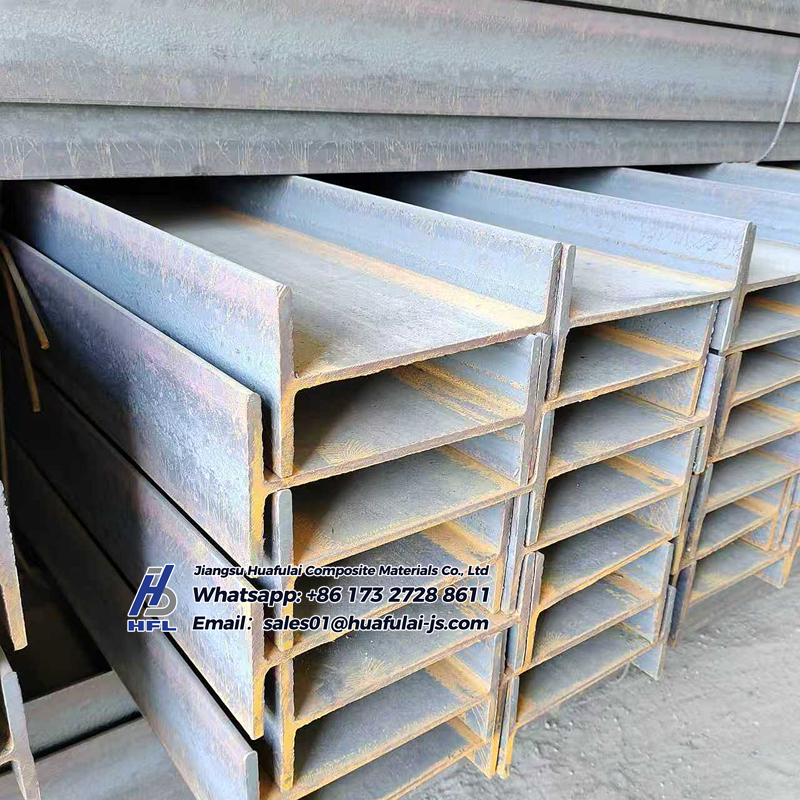

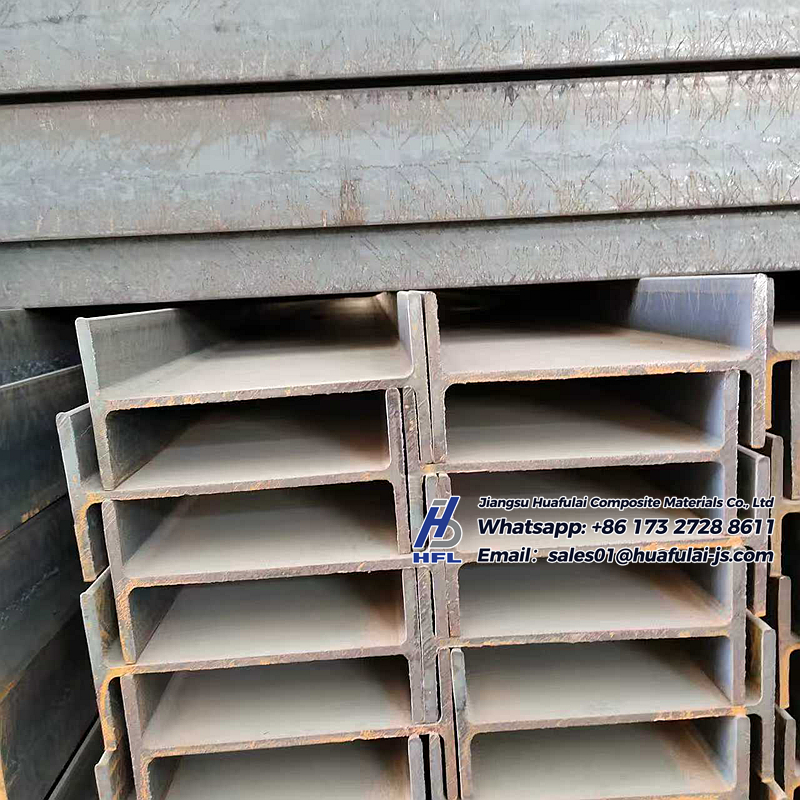

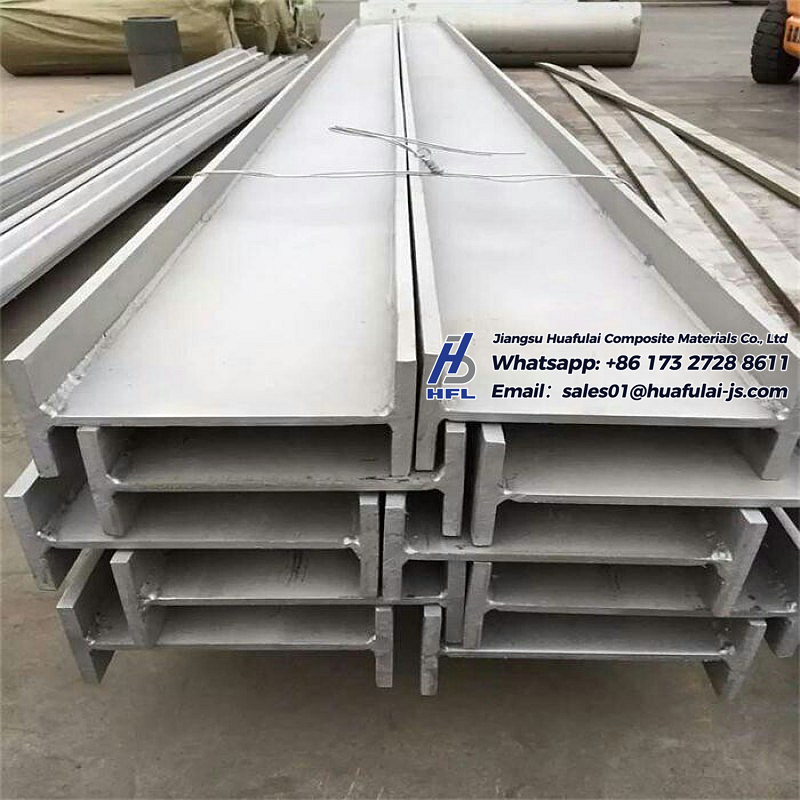

H Beam

H Beam steel, also known as wide flange beam, is a highly efficient and cost-effective structural profile. Its cross-section resembles a capital "H," featuring wide flanges and a thick web. This design distributes weight more evenly and provides a superior strength-to-weight ratio compared to traditional I-beams, making it ideal for applications requiring heavy load-bearing capacity and stability.
Key Specifications
Material Grades: Carbon steel (ASTM A36, SS400, Q235B, S235JR) or high-strength low-alloy steel (ASTM A572 GR50, S355JR).
Dimensions:
Height (Web): 100mm to 900mm.
Flange Width: 100mm to 300mm.
Web Thickness: 5mm to 25mm.
Standards: Produced according to JIS G3192, ASTM A6, GB/T 11263, or EN 10034.
Finishes: Black, primer painted, or hot-dip galvanized (HDG).

    Contact us
    Product Description

    As global infrastructure projects become more ambitious—from super-tall buildings to long-span sea-crossing bridges—the demand for structural steel with superior load-bearing capacity and consistent quality has never been higher . Our Hot Rolled Steel H Beams are engineered to meet these rigorous demands. Manufactured using advanced rolling technologies and strict quality control systems, our H beams offer excellent dimensional accuracy, high strength-to-weight ratios, and outstanding structural integrity . Whether you need standard sections for general construction or customized jumbo profiles for heavy industrial applications, our product range provides the foundational strength your projects require.

    Core Advantages

    Superior Load-Bearing Capacity: Optimized flange and web design provides maximum strength while saving 10-15% of material compared to traditional beams under the same pressure .

    Precision Dimensions & Tolerances: Achieved via advanced thermo-mechanical controlled process (TMCP), ensuring consistent performance and ease of fabrication .

    Exceptional Low-Temperature Toughness: Engineered with micro-alloying techniques to deliver impact toughness exceeding 200J at -20°C, ideal for cold-climate projects .

    Extensive Size Range & Customization: Available from 100mm to over 900mm in height (HEA/HEB/UC/IPE series). Custom lengths (up to 18m) and special grades upon request .

    Green & Sustainable Manufacturing: Produced using energy-efficient processes with available Environmental Product Declarations (EPD), supporting your sustainable building goals


    Details Information

    Main Types & Specifications

    Grades

    Q235, Q355, A36, S235JR, S355JR (custom grades available)

    Types

    Hot-Rolled H Beam, Welded H Beam (custom shapes available)

    Standards

    Carbon Steel: ASTM A36, ASTM A992

    European Standard: EN 10025 (S235JR, S275JR, S355JR/J0/J2)

    Japanese Standard: JIS G3101 (SS400), JIS G3106 (SM490)

    Chinese Standard: GB/T 11263 (Q235B, Q345B)

    Tolerance

    Compliant with EN 10034, JIS G3192

    H Beam Size Chart – Dimensions & Section Properties

    H Beam Size   (mm)

    Flange Width (mm)

    Web Thickness (mm)

    Section Height (mm)

    Theoretical Weight (kg/m)

    100×100×6×8

    100

    6

    100

    17.2

    125×125×6.5×9

    125

    6.5

    125

    23.8

    150×150×7×10

    150

    7

    150

    31.9

    175×175×7.5×11

    175

    7.5

    175

    40.3

    200×100×5.5×8

    100

    5.5

    200

    21.7

    200×200×8×12

    200

    8

    200

    50.5

    250×125×6×9

    125

    6

    250

    29.7

    250×250×9×14

    250

    9

    250

    72.4

    300×150×6.5×9

    150

    6.5

    300

    37.9

    300×300×10×15

    300

    10

    300

    94.5

    350×175×7×11

    175

    7

    350

    50

    350×350×11×16

    350

    11

    350

    121

    400×150×8×13

    150

    8

    400

    55.8

    400×200×8×13

    200

    8

    400

    66

    400×400×13×21

    400

    13

    400

    172

    450×200×9×14

    200

    9

    450

    76.5

    500×200×10×16

    200

    10

    500

    89.6

    *Dimensions are based on commonly used international standards such as JIS G3101, ASTM A36, and EN 10025.

    *All values are approximate and may vary slightly depending on the standard and manufacturing process in this H beam size and weight chart.

    Widely Used Application Scenarios

    • Building Construction: Large-span workshops, warehouses, shopping malls, high-rise buildings (beams and columns).

    • Infrastructure: Bridges, viaducts, railway stations, airports and municipal engineering structures.

    • Industrial Facilities: Factory workshops, steel structure plants, power stations and heavy industry equipment platforms.

    • Logistics & Warehousing: Logistics centers, warehouse shelves, and container yards (load-bearing frames).

    • Public Buildings: Stadiums, exhibition halls, theaters and cultural centers (large-span roof structures).

    • Marine & Port: Port terminals, offshore platform supports and marine engineering structural components.



    FAQ

    Q: Can I get samples for quality testing before placing a bulk order?

    A: Yes, we support providing cut samples (1-2 meters) for your evaluation. The sample cost can be deducted from the final invoice for formal orders .

    Q: What is your Minimum Order Quantity (MOQ)?

    A: Our usual MOQ is 5 tons for standard sizes. However, we welcome trial orders of 1-25 tons for new customers to build trust and cooperation .

    Q: Do you offer non-standard lengths ?

    A: Absolutely. We specialize in customization. We can cut beams to your exact length (e.g., 11.5m) .


    Ready to secure H beam materials for your next construction or industrial project? Contact our sales team today for a detailed quote or technical consultation. We're here to help you find the right solution for your specific requirements.
